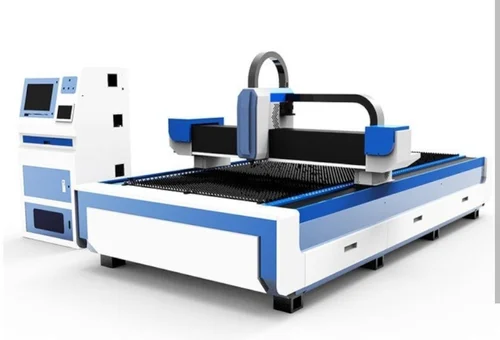

Fiber Laser Cutting Machine

High-Speed Precision Cutting for Modern Metal Fabrication

The DIHAI CNC Fiber Laser Cutting Machine is designed for manufacturers that require fast cutting speed, high accuracy, stable performance, and lower operating costs. Equipped with advanced fiber laser technology and an intelligent CNC control system, the machine delivers smooth cutting edges and consistent results across a wide range of metal materials.

Its heavy-duty machine structure, precision transmission system, and reliable laser source make it suitable for continuous industrial production. The machine can process carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, and other metal sheets with excellent efficiency.

Whether used for small-batch customized work or large-scale manufacturing, the DIHAI CNC Fiber Laser Cutting Machine helps improve productivity, reduce material waste, and maintain consistent cutting quality.

---

Key Features

High Cutting Accuracy

The precision motion system and intelligent CNC controller provide accurate positioning and stable cutting performance, even when processing complex shapes and detailed patterns.

Fast and Efficient Production

Fiber laser technology offers high cutting speed and excellent energy efficiency, helping manufacturers shorten production cycles and increase daily output.

Smooth Cutting Edges

The machine produces narrow cutting seams, minimal deformation, and clean edges, reducing the need for secondary grinding or polishing.

Strong and Stable Machine Bed

The heavy-duty welded machine frame is designed to reduce vibration and maintain long-term structural stability during high-speed operation.

Intelligent CNC Control

The user-friendly control system supports drawing import, automatic layout, cutting path optimization, parameter adjustment, and real-time operation monitoring.

Low Operating Cost

Fiber laser systems offer high electrical efficiency, low maintenance requirements, and a long service life compared with many traditional metal-cutting methods.

Multiple Safety Protections

The machine can be equipped with protective covers, emergency stop controls, alarm systems, smoke extraction, and automatic fault detection for safer operation.

Wide Material Compatibility

It is suitable for cutting carbon steel, stainless steel, aluminum, brass, copper, galvanized sheet, and other commonly used metal materials.

---

Technical Specifications

Specification	Standard Details
Product Name	Fiber Laser Cutting Machine
Product Category	Metal Sheet Laser Cutting Machine
Laser Power	1,500 W–30,000 W
Working Area	1,500 × 3,000 mm / 2,000 × 4,000 mm / 2,000 × 6,000 mm
Laser Source	Fiber laser source
Cutting Materials	Carbon steel, stainless steel, aluminum, brass, copper and galvanized steel
Positioning Accuracy	Up to ±0.03 mm
Repositioning Accuracy	Up to ±0.02 mm
Maximum Moving Speed	Up to 120 m/min
Maximum Acceleration	Up to 1.5G–2.0G
CNC Control System	Intelligent laser cutting control system
Drive System	Servo motor and precision transmission system
Cooling System	Industrial water chiller
Lubrication System	Automatic lubrication
Power Supply	Customized according to local voltage
Machine Structure	Heavy-duty welded steel bed
Cutting Method	Non-contact laser cutting
File Formats	DXF, DWG, AI, PLT and other common formats
Optional Configuration	Exchange table, protective cover, loading system and rotary device
Warranty	According to the final quotation and configuration
Customization	Available

Technical parameters may vary depending on the selected model, laser power, working area, and optional configuration.

---

Suitable Materials

The Fiber Laser Cutting Machine can process a wide range of metal sheets, including:

• Carbon steel
• Stainless steel
• Aluminum
• Brass
• Copper
• Galvanized steel
• Mild steel
• Coated metal sheets

Cutting thickness depends on the selected laser power, material type, cutting gas, and required edge quality.

---

Main Applications

This machine is widely used in:

• Sheet metal fabrication
• Automotive parts manufacturing
• Electrical cabinet production
• Kitchen equipment manufacturing
• Advertising and signage
• Agricultural machinery
• Construction machinery
• Metal furniture production
• Elevator manufacturing
• HVAC equipment
• Industrial equipment production
• Custom metal processing

---

Intelligent Cutting System

The integrated control system simplifies the complete cutting process. Operators can import drawings, arrange parts, optimize material usage, set cutting parameters, and monitor machine operation from one interface.

Automatic nesting helps reduce sheet waste, while intelligent edge detection and path optimization improve production efficiency. The system can also store frequently used parameters for faster setup during repeat orders.

---

Reliable Machine Structure

The machine bed is manufactured using a reinforced welded steel structure. It undergoes stress-relief treatment and precision machining to improve rigidity and reduce deformation.

This stable structure supports high-speed operation and helps maintain cutting accuracy over long periods of use. The machine gantry is lightweight yet strong, allowing fast movement without compromising stability.

---

Cutting Quality

The Fiber Laser Cutting Machine delivers:

• Smooth and clean cutting edges
• Narrow cutting seams
• Low heat-affected zones
• Minimal material deformation
• Accurate holes and contours
• Consistent cutting quality
• Reduced secondary processing

These advantages help customers improve product appearance and shorten the overall manufacturing process.

---

Optional Configurations

The machine can be customized with different options according to the production requirement:

Optional Feature	Function
Exchange Working Table	Reduces loading and unloading time
Full Protective Cover	Improves safety and controls smoke and light
Automatic Loading System	Supports automated sheet handling
Automatic Unloading System	Improves production efficiency
Rotary Cutting Device	Supports round and square tube cutting
High-Power Laser Source	Suitable for thicker metal processing
Camera Monitoring	Allows operators to observe the cutting process
Dust Extraction System	Removes smoke and cutting particles
Voltage Customization	Adapts the machine to local electrical standards
Remote Technical Support	Supports installation, training, and troubleshooting

---

Why Choose DIHAI CNC?

DIHAI CNC focuses on the development and manufacturing of intelligent metal fabrication equipment. Every machine is assembled and tested before shipment to ensure reliable operation and consistent cutting performance.

Customers receive support throughout the complete purchasing process, including machine selection, configuration guidance, installation support, operator training, maintenance advice, and after-sales service.

---

Service and Support

Our service includes:

• Machine configuration consultation
• Sample cutting support
• Installation guidance
• Operator training
• Remote technical assistance
• Spare-parts supply
• Maintenance guidance
• Customized production solutions

---

Request a Quote

Send us your material type, maximum sheet size, required cutting thickness, and expected production capacity. Our technical team will recommend a suitable Fiber Laser Cutting Machine configuration for your project.
